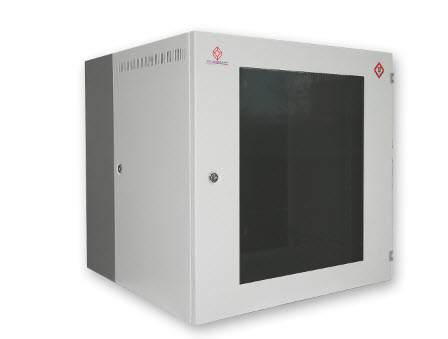

GERMAN Wall Rack RACK 9U 60CM

Designed and Manufactured To comply Standards of ANSI/EIA-310D-1992 [Rev.EIA-310Cl,
IEC60297-1, IEC60297-2, BS5954 Part:2, DIN 41494, 19" Standard.
❖ J-Part Designed Front Door, Central Part and Back Base.
❖ Manufactured Made from 1.2mm Electro-Galvanized Steel Sheet and 2.0mm for mounting
pole, 100% rust proof.
❖ Mounting Pole Designed to be L-shape angle with 10x1Dmm square punching hole to
increase strength and flexible to adjust freely with screened Rack unit [U) on the mounting
pole.
❖ Front Door
❖

@,
- For G1-XXXXX model was the steel frame with acrylic 5.0mm thickness and 38 cm
width, with film protection [About the height will follow as the size of Rack unit).
- For G1-XXXXXF model was the steel frame with acrylic 5.0mm thickness and 38 cm
width, with and film protection [About the height will follow as the size of Rack unit)
and perforated capsule surrounding for ventilation.
- For G1-XXXXXP model was the steel with perforated capsule ventilation surrounding
for 50% of door's area.
- Door edge with 3-fin type of dust proof rubber seal [Gray color).
- Support security lock with 19" Germany master key, and trademark embossing on the
top.
Center Part There is sliding rail to adjust the mounting pole. The bottom equipped with
special rollers for opening and locking to back base part. The top has pre-punch fan
pattern for mounting the fan sets [1-3 fan sets for installation). The both side have
ventilation grill and support security locking system with 19" Germany master key same
as the front door.
Back Base There is the clip with 1 0x1 Dem. for cable access at the top and bottom and
can be mounting to the wall with screws by 2.4mm thickness two plies steel on the
rear part.
Hinge Made from 3 pieces of special high strength [ABS) or other materials [as requested).
without disturbance noise and rust-free. The front and rear door can reverse to change
the opening direction from the left or right side by adjusting screw at the nut of hinge.
Grounding System 2.5mm copper wire with yellow and green color stripe which connect
between cabinet's structure and door.
New Shine Light Gray Two-tone color painted by by Electrostatic powder coat system
with international standards ASTM
Screw Set Provided screws, captive nuts, plastic washer with nickel plating and M6
standard.
Manufacturer and Distributor Certified by ISO 9001 : 2015
Index of Protection IP 40 for G1-XXXXX and IP 20 for G1-XXXXXP,G1-XXXXXF.
Options
Color
Pole
Delivery with
*Black or other [as requested)
4 Poles
- 3 Master key with key number and trademark embossing
- 4 Sets of wall mounting screw.
- Nut and screw sets according to no. of Rack unit [u)
